12 FT Single Drum Mine Hoist FOR SALE

Single Drum Mine hoist WinchID# H110

OVERVIEW

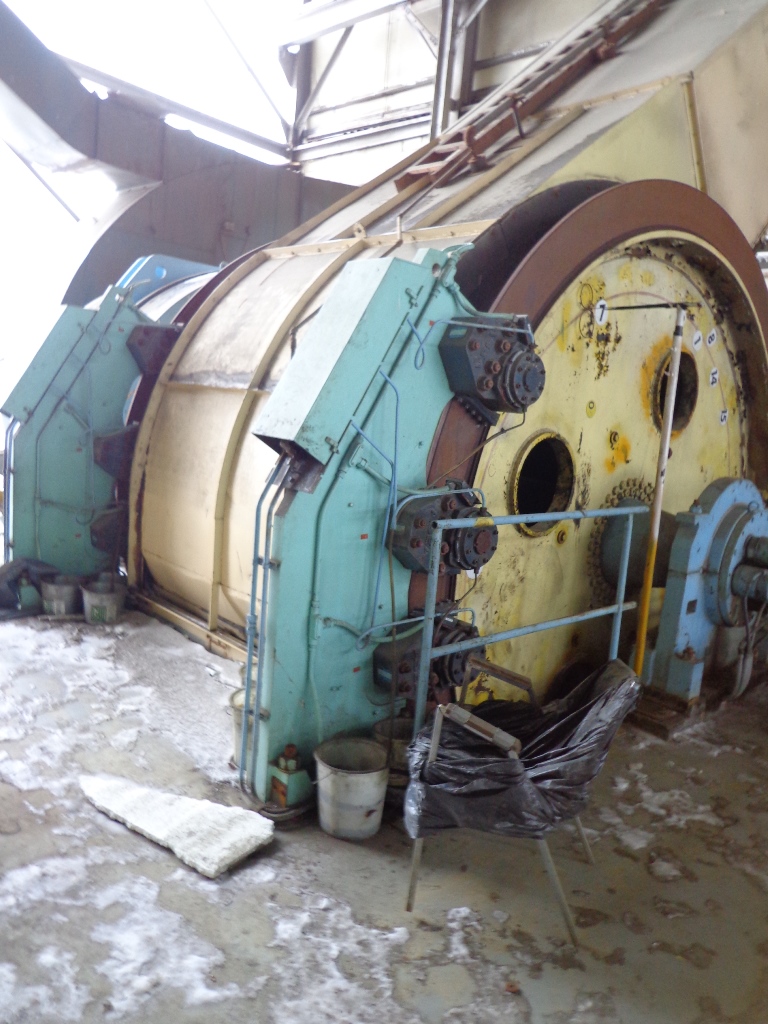

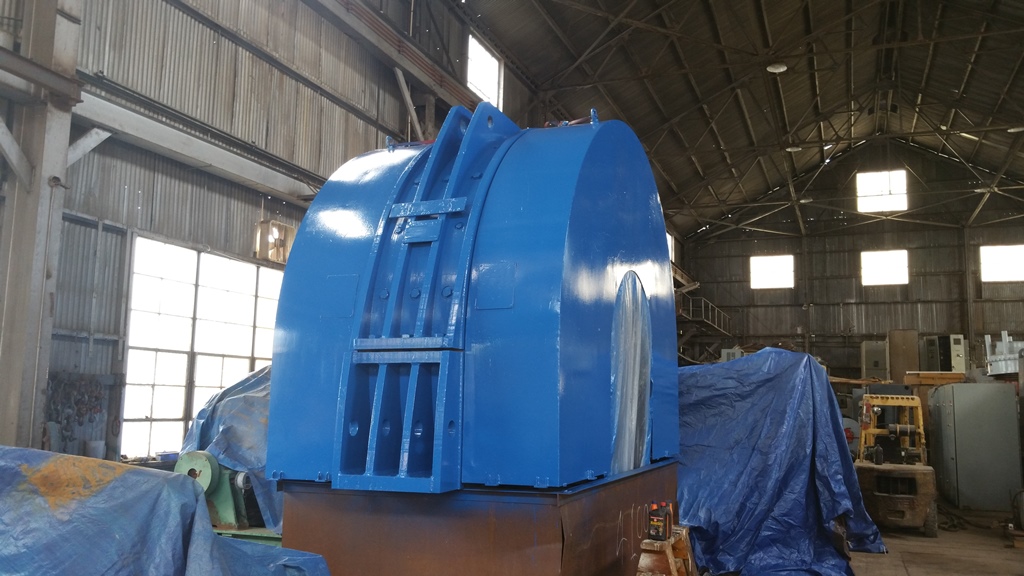

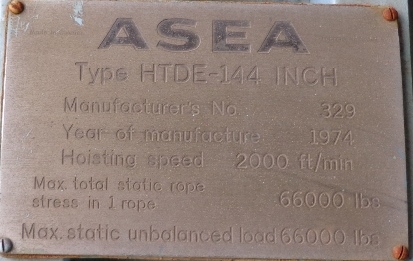

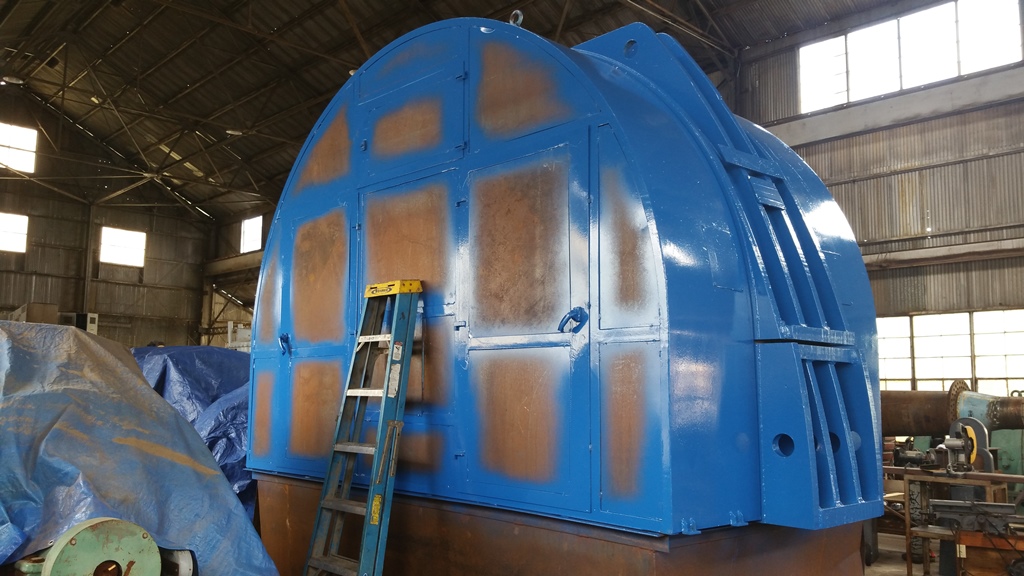

12ft Hoist, ASEA Single Drum Hoist, 12ft x 6.5ft Mine Hoist, Type HTDE-144 INCH, Serial # 329, ASEA 2,100 / 4,080 kW, 1000 VDC Drive Hoist Motor, 65,000lbs Line Pull, variable speed up to 2,000 fpm, Direct Drive, 3,000 Foot Depth, 1.75'' rope diameter, 66,000 lbs maximum static rope stress, Disk Brakes with four brake stands one disc on each side of drum Hagglund 408 calipers 3 per stand, Includes all related electrical and mechanical equipment, includes a ASEA Motor LH 2207, No 64991438, DC Motor 2,100 Cont., 4,080 kW momentary, 53 rpm rated, 47 rpm momentary, YOM 1974, includes GE Transformer, Dry type, No 281710, En. 57399, 750 KVA 80C.AN, 3 phase, 60 cycles, 4160-600Y/346 volts, Low Voltage 600Y 346 volts, 722 amps, 5.6 % @ 75oC Impedance

Quantity Available (1)

ID# H110.

12ft Hoist, ASEA Single Drum Hoist, 12ft x 6.5ft Mine Hoist, Type HTDE-144 INCH, Serial # 329, ASEA 2,100 / 4,080 kW, 1000 VDC Drive Hoist Motor, 65,000lbs Line Pull, variable speed up to 2,000 fpm, Direct Drive, 3,000 Foot Depth, 1.75'' rope diameter, 66,000 lbs maximum static rope stress, Disk Brakes with four brake stands one disc on each side of drum Hagglund 408 calipers 3 per stand, Includes all related electrical and mechanical equipment, includes a ASEA Motor LH 2207, No 64991438, DC Motor 2,100 Cont., 4,080 kW momentary, 53 rpm rated, 47 rpm momentary, YOM 1974, includes GE Transformer, Dry type, No 281710, En. 57399, 750 KVA 80C.AN, 3 phase, 60 cycles, 4160-600Y/346 volts, Low Voltage 600Y 346 volts, 722 amps, 5.6 % @ 75oC Impedance

QUANTITY AVAILABLE (1).

Location: Florence, Arizona.
