6ft Double Drum Mine Hoist FOR SALE

Double Drum Mine Hoist WinchID# H085

OVERVIEW

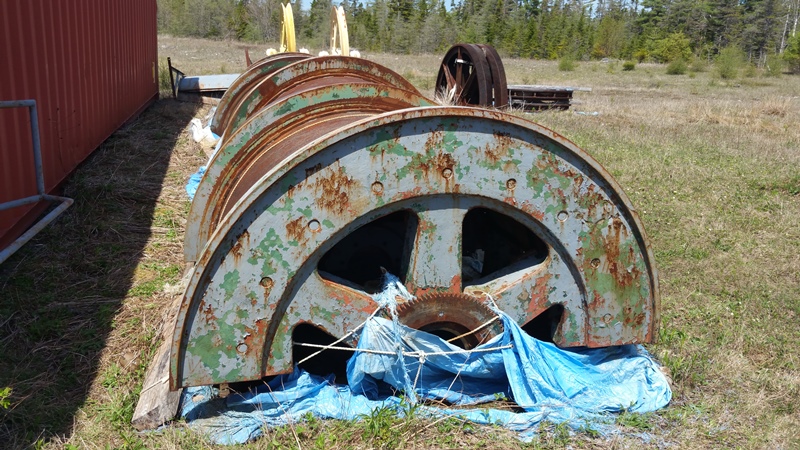

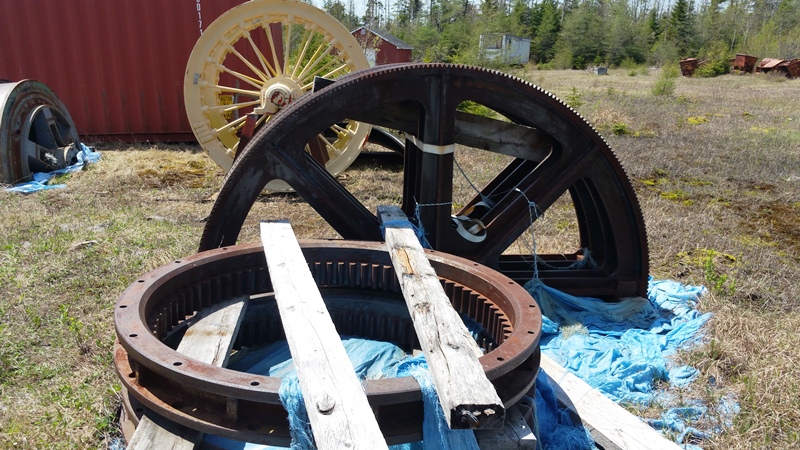

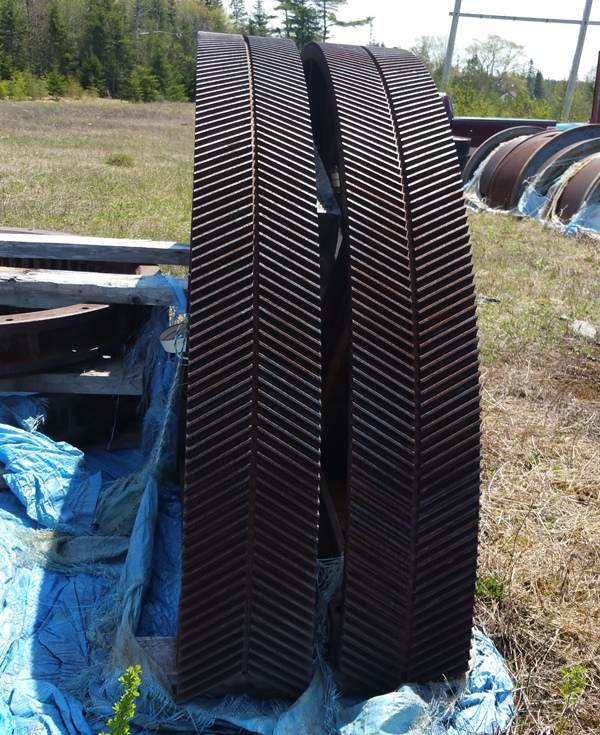

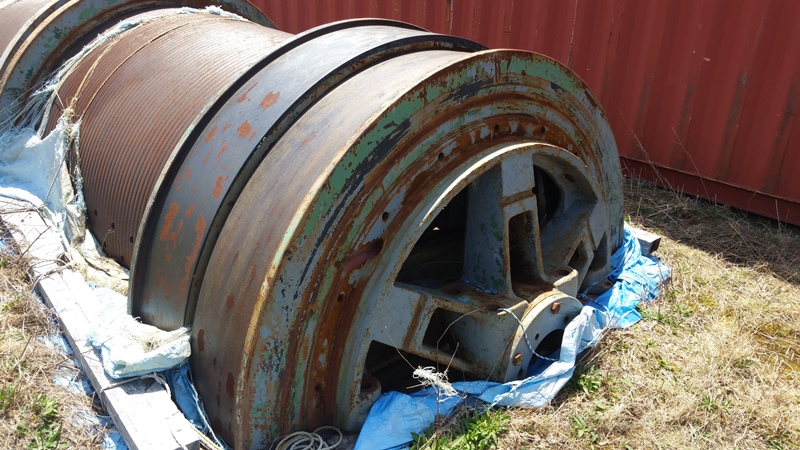

6ft Hoist Canadian Ingersoll Rand, 72'' dia x 60'' Double Drum Hoist, Service type: sinking and production, Estimated depth 1530ft (1 1/8'' Cable) or 1950ft ( 1'' cable), Inertia (hoist + sheave): 400,000 lb-ft2, Type of Controller: Lilly Duplex Model C 4476 4477, Maximun Load Permitted 16,000lbs, Rotation Speed 54.65 rpm, Pitch 1.21'', Motors: GE, 300hp, 2200v, 490rpm, Inertia per Motor*g: 1 300(lb ft2), Number of gear tooth (main gear) 332, Number of pinion tooth 30, Gearing Ratio 11.07

Quantity Available (1)

Hoist Brake Layout Drawing

General Arrangement Drawing

Elevation View Drawing

GA Drawing

Headframe Drawing

Certification & Data

Hoist Brake Layout Drawing

Hoist Foundation Drawing

Hoist General Arrangement Drawing

Sheave Study Report

ID# H085.

6ft Hoist Canadian Ingersoll Rand, 72'' dia x 60'' Double Drum Hoist, Service type: sinking and production, Estimated depth 1530ft (1 1/8'' Cable) or 1950ft ( 1'' cable), Inertia (hoist + sheave): 400,000 lb-ft2, Type of Controller: Lilly Duplex Model C 4476 4477, Maximun Load Permitted 16,000lbs, Rotation Speed 54.65 rpm, Pitch 1.21'', Motors: GE, 300hp, 2200v, 490rpm, Inertia per Motor*g: 1 300(lb ft2), Number of gear tooth (main gear) 332, Number of pinion tooth 30, Gearing Ratio 11.07

QUANTITY AVAILABLE (1).

Location: Canada.
