ID# H195.

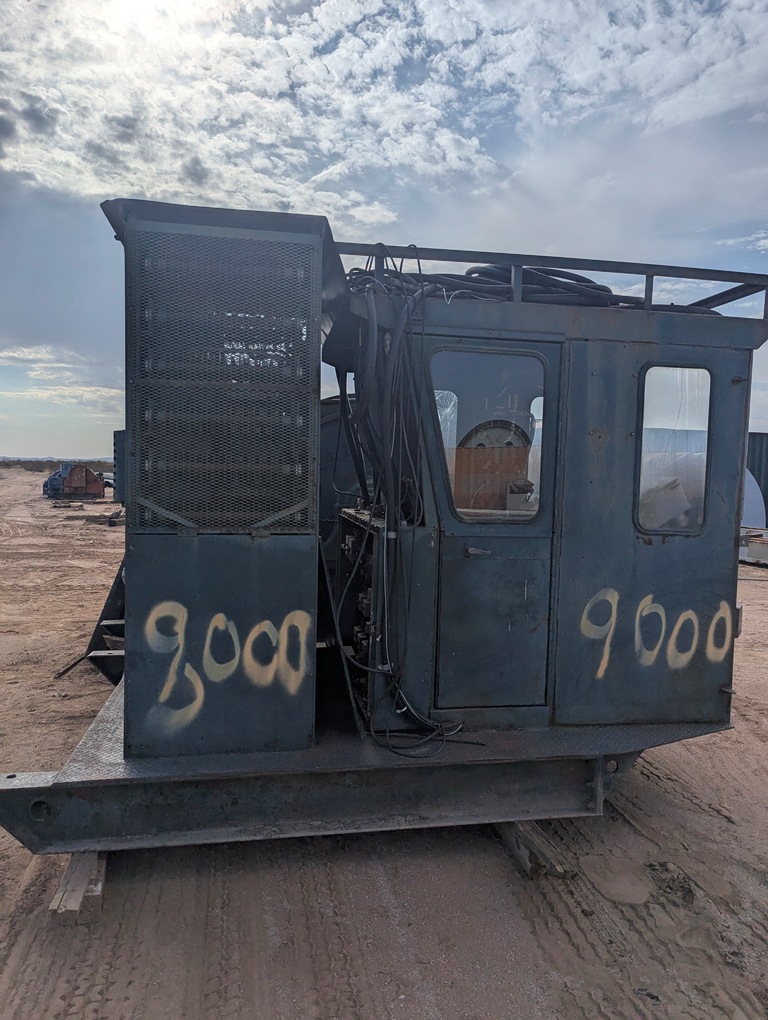

5 ft diameter single drum ASEA mine hoist. Approximate rope capacity up to 2,700 ft (822 m) based on 1" rope and multi-layer spooling (actual capacity dependent on rope condition and winding practices).
Rated max line pull 12,000 lbs (5,443 kg).
Line speed approximately 394 ft/min (2.0 m/s).
Drum face width 38 inches, configured for 1" wire rope.

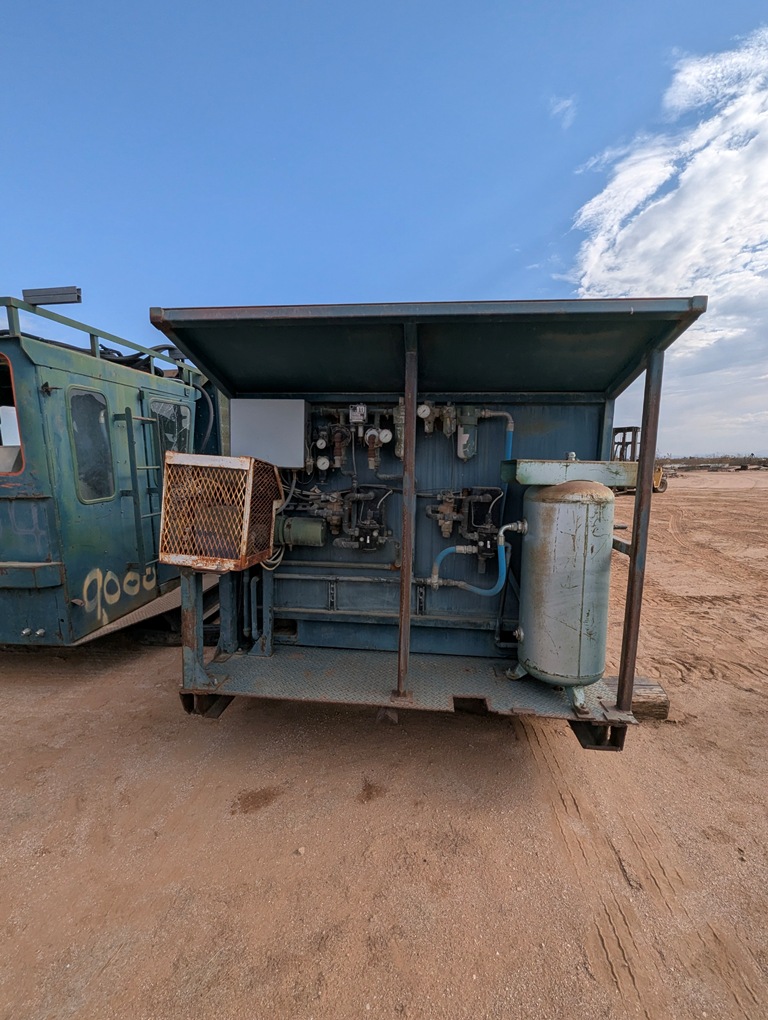

Equipped with drum caliper brakes on both sides, with pneumatic release and weight-applied braking system.
Driven by 125 HP vertical motor, 575V, 127 amps, 1765 RPM, 3-phase, 60 Hz, ASEA induction wound rotor motor.

QUANTITY AVAILABLE (1).

Location: Florence, Arizona.
